FLAT ROOF BALLASTED
Our roof connection kits have been designed to accommodate low slope applications, great for membrane surfaces, gravel, or concrete. The simple design removes the guesswork, and is easily adapted to hybrid or mechanically fastened projects.
Featuring multiple tilt angles and variable inter-row spacing – work around obstacles or reduce the psf by better distributing the system weight over the roof surface.
The product fully supports the module, NO corner clamping – well suited for tough conditions, including high snow loads.
The Row Connector: serves as NS wire management. Bonds the entire array, eliminating the need for grounding lug & copper from row to row. Stiffens the array to reduce ballast requirements.
PORTRAIT
Landscape
Rail Based
Rail Free
THL BALLASTED Installation
The Top Hat Landscape (THL) ballasted racking system derives its name from the shape of the ballast tray. The version of the ballasted rack in the video is designed for 5 degree tilt with a 6.5" inter-row spacing. The components are manufactured using US made galvanized steel. The product boasts a low part count and simple installation process.
nATIONAL Energy Partners

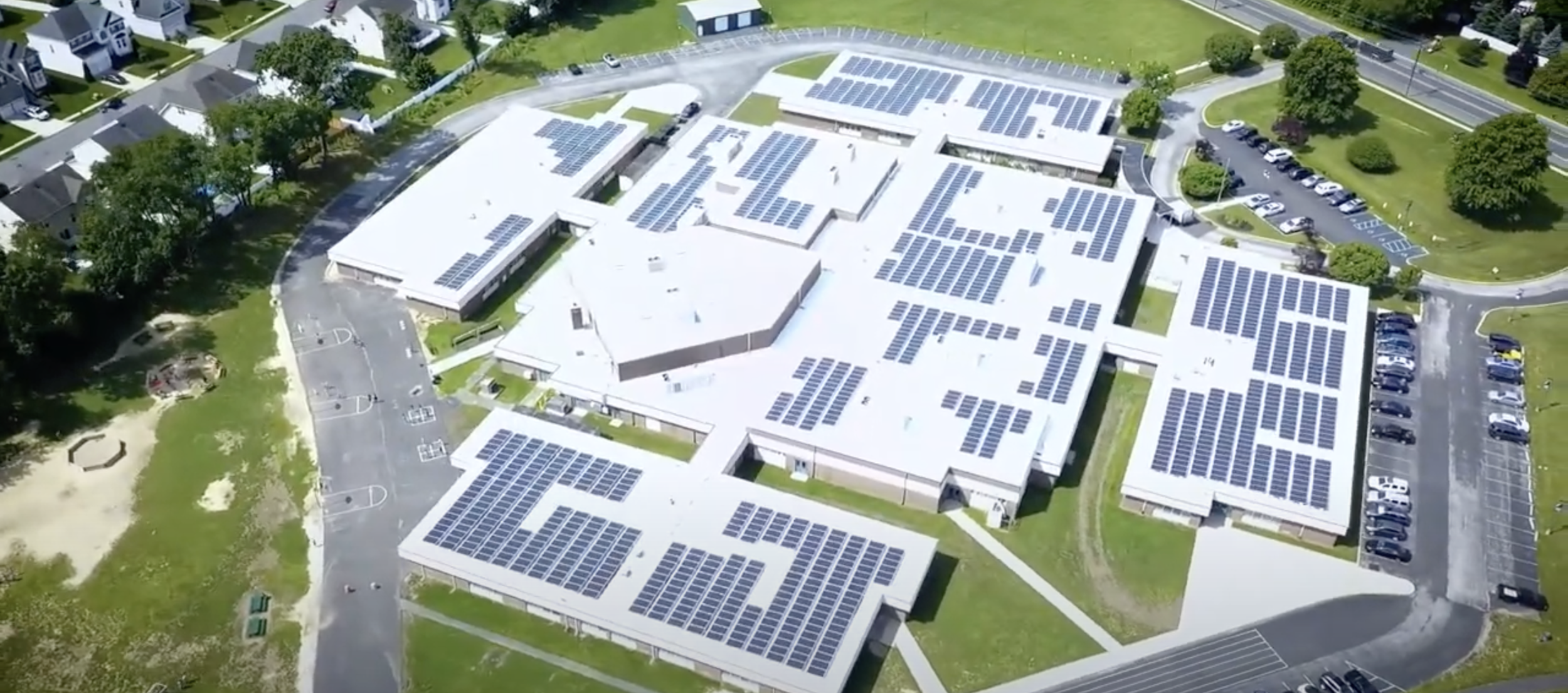

Advanced Racking designed and supplied National Energy Partners with the ballasted racking for several MW's of solar on public schools
TECHNICAL SPECIFICATIONS
Roof Types
All types with 5° of slope or less
Tilt Angle
All angles between 3°-10°
Warranty
20-year fully transferable
Connection
Non-penetrating, hybrid, fully attached
Training
Install field guides and onsite available
Materials
Aluminum and steel with stainless steel fasteners
Module Compatibility
All — including thin film, glass on glass
UL Certification
Certified to UL2703 standards
System Weight
3.5 - 10 psf on average
Get help creating a layout with an estimate request form.
Questions? Contact Us
Download and review our datasheets and field guides.
